Abstract of [Son12d]

Multiwavelength anomalous diffraction at high x-ray intensity

Sang-Kil Son, Henry N. Chapman, and Robin Santra

DPG Spring Meeting of the Section AMOP
(German Physical Society, Stuttgart, Germany, March 12-16, 2012) [oral presentation]

[bib][BibTeX][slide][slide: 4Mb][link]http://www.dpg-verhandlungen.de/year/2012/conference/stuttgart/part/a/session/11/contribution/3

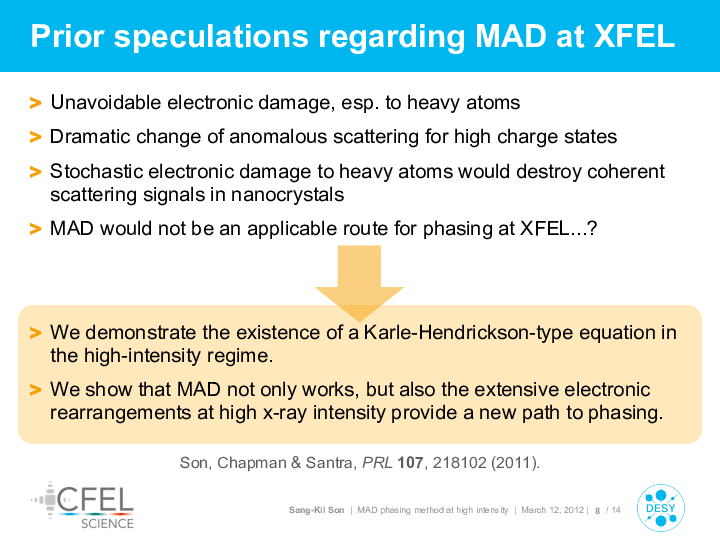

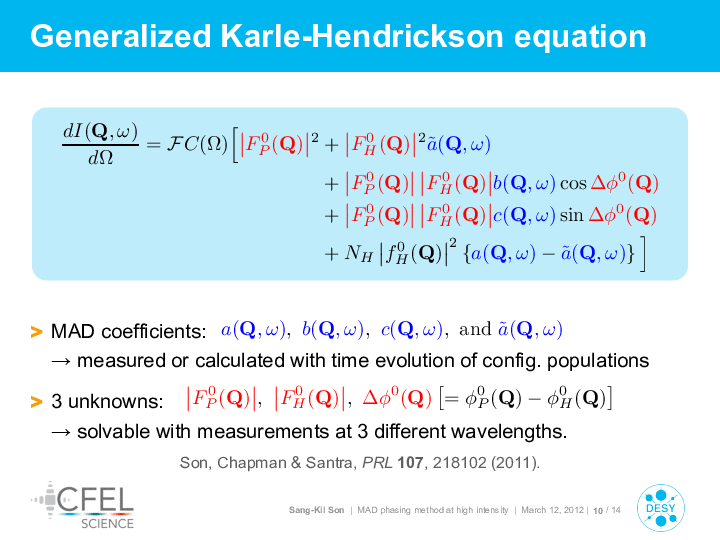

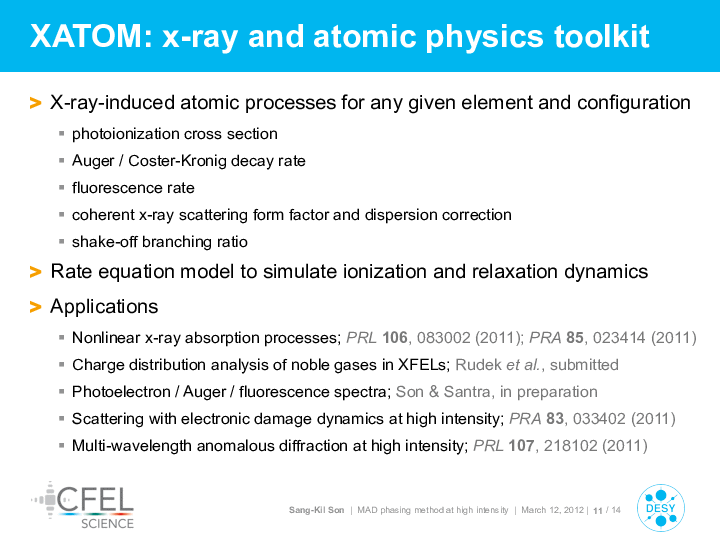

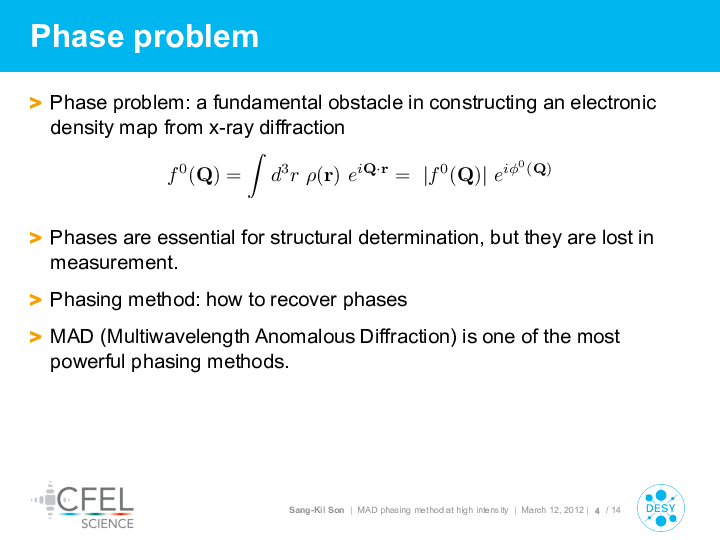

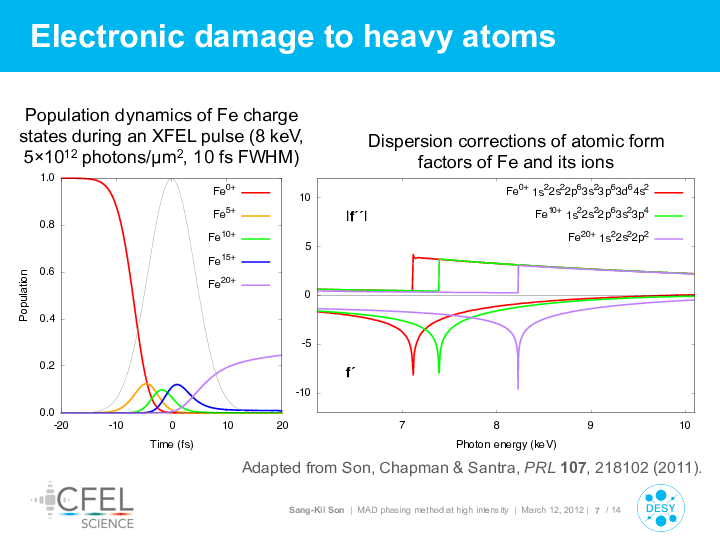

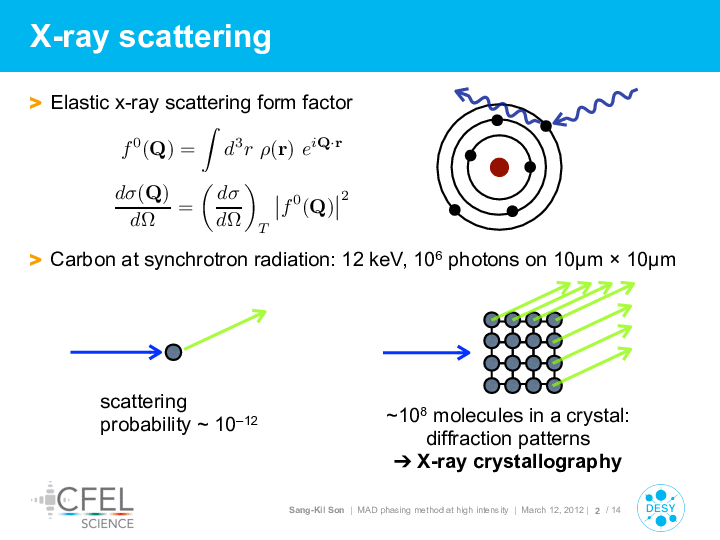

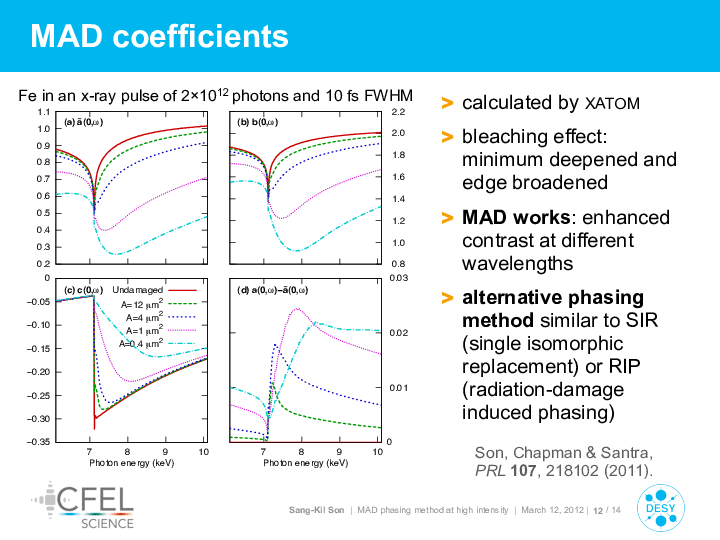

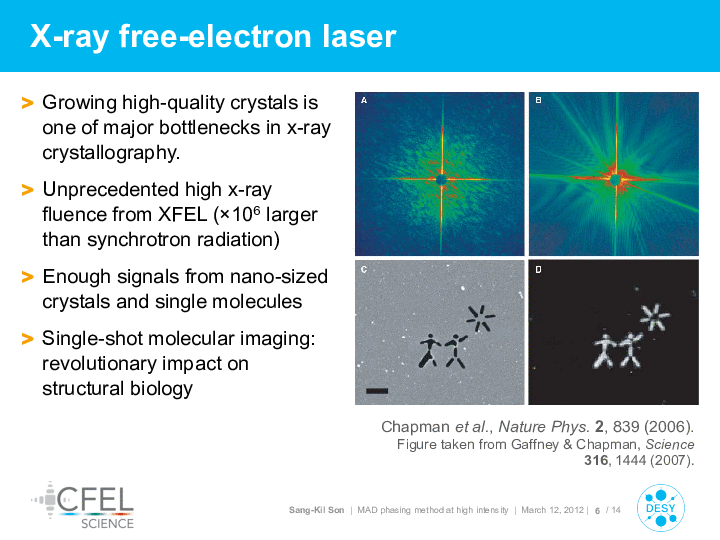

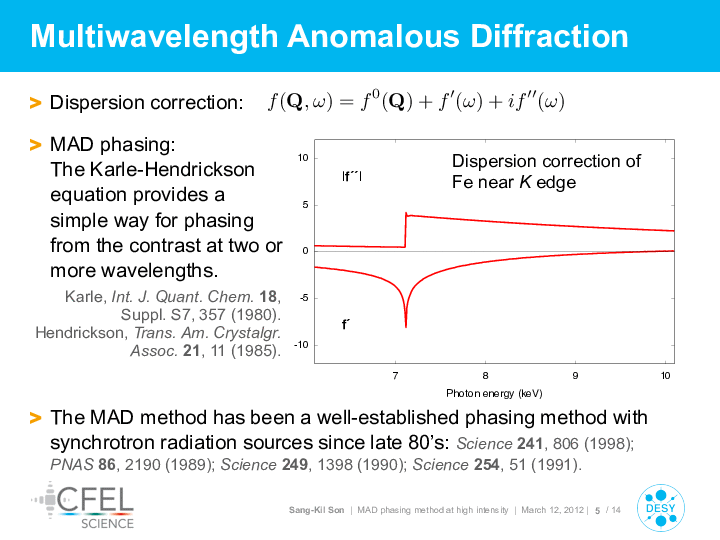

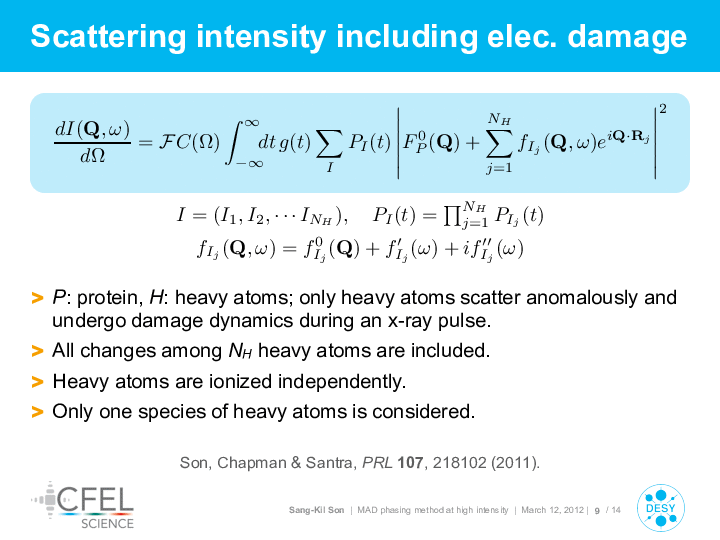

The multi-wavelength anomalous diffraction (MAD) method is widely used in x-ray crystallography with synchrotron radiation to determine phase information by employing dispersion corrections from heavy atoms on coherent x-ray scattering. X-ray free-electron lasers (FELs) show promise for revealing the structure of single molecules or nanocrystals within femtoseconds, but the phase problem remains largely unsolved. Because of the extremely high fluence of FELs, samples experience severe and unavoidable electronic radiation damage, especially to heavy atoms, which hinders direct implementation of the MAD method with x-ray FELs. We propose a generalized version of the MAD phasing method at high x-ray intensity. We demonstrate the existence of a Karle–Hendrickson-type equation for the MAD method in the high-intensity regime and calculate relevant coefficients with electronic damage dynamics and accompanying changes of the dispersion correction. Here we present the XATOM toolkit to simulate detailed electronic damage dynamics and discuss how the proposed method is applicable to the phase problem in femtosecond x-ray nanocrystallography.

Tags: MAD, x-ray scattering, x-ray diffraction, dispersion, x-ray crystallography, nanocrystal, molecular imaging, damage, phase problem, FEL, CFEL, DESY

[Page1] [Page2] [Page3] [Page4] [Page5]
[Page6] [Page7] [Page8] [Page9] [Page10]
[Page11] [Page12] [Page13] [Page14]
Download a PDF: 4Mb
